The Magma Advanced Pumping System includes the pump controller and a range of sanitary air diaphragm pumps and silicone diaphragms that are ideal for controlling your alternating tangential flow (ATF) filtration process.
- Key applications include:
- Bioreactor perfusion with a hollow fiber filter (compatible with all brands of filters)
- N-1 perfusion process intensification
- Viral Vector Production
- Low shear operation in its pumping action that makes it ideal for use in shear-sensitive applications such as pumping mammalian cells
- For perfusion, scalable from 100mL to >100L
- Single use pump heads that eliminate the need for cleaning and can be integrated smoothly into other single-use process components including bioreactors
- Perfect for both research and production
- Plug-and-play design creates an integrated system for advanced applications
- Flexible design optimizes lab space
Magma APS Pump and Diaphragm Action
Download the Magma™ APS Gen2 Product Brochure
Explore the full capabilities of the Magma™ Advanced Pumping System—our low shear, scalable, and plug-and-play solution to control your alternating tangential flow (ATF) filtration process. This brochure includes detailed specs, application notes, and product configurations for both pump heads and diaphragms.
Additional System Benefits
Performance

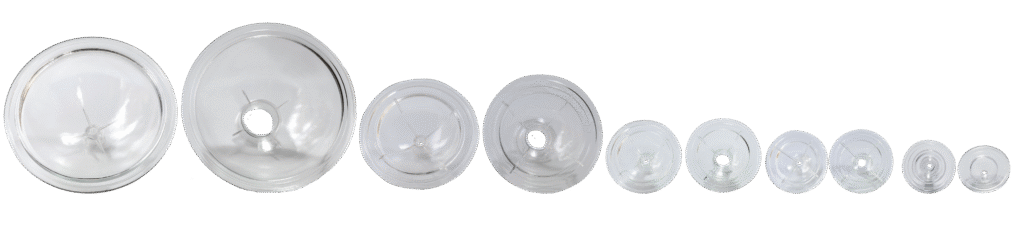

- Five pump head sizes are available to accommodate the needs of your process
- The pump head model is approximate of the pump volume (in milliliters) but may vary with expansion of silicone diaphragm, and flow rate is a function of the cycle time set in the pump controller
- Each has a sanitary flange for secure connection to process as required
- Diaphragm material is USP Class VI silicone and both polysulfone plastic and diaphragm are gamma compatible
- Diaphragm, polysulfone plastic pump heads, and stainless-steel pump heads are autoclave-compatible
- The pump controller cycles pressurized air to discharge liquid contents, and vacuum or pressure head to fill liquid into the pump chamber
- All qualified for > 1 million cycles to provide several months of continuous operation*
*Service life depends on cycle frequency/flow rate.
Ordering Information
Plastic Pump Heads
Material: Polysulfone
| Part Number | Description |
|---|---|
| APSP-PH6-SU | Magma APS-6D Dome Pump Head |
| APSP-PH20-SU | Magma APS-20D Dome Pump Head |
| APSP-PH50-SU | Magma APS-50D Dome Pump Head |
| APSP-PH180-SU | Magma APS-180D Dome Pump Head |
| APSP-PH860-SU | Magma APS-860D Dome Pump Head** |
Pump Diaphragms
Material: Silicone
| Part Number | Description |
|---|---|
| APSP-DIA6D | Magma APS-6 Dome Diaphragm |
| APSP-DIA20D | Magma APS-20 Dome Diaphragm |
| APSP-DIA50D | Magma APS-50 Dome Diaphragm |
| APSP-DIA180D | Magma APS-180 Dome Diaphragm |
| APSP-DIA860D | Magma APS-860 Dome Diaphragm |
**Available late 2025
Stainless Steel Pump Heads
Material: 316L Stainless Steel
| Part Number | Description |
|---|---|
| APSP-PH20D | Magma APS-20D Dome Pump Head |
| APSP-PH50D | Magma APS-50D Dome Pump Head |
| APSP-PH180D | Magma APS-180D Dome Pump Head |
| APSP-PH860D | Magma APS-860D Dome Pump Head |
